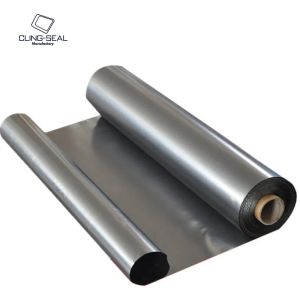

    Ultra-Thin Flexible Graphite Gasket Sheet

    Ask Lasest Price
    Brand Name : CLINGSEAL
    Model Number : CSG80
    Certification : ISO,SGS
    Price : 2.2USD PER KG
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500Tons per month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Ultra-Thin Flexible Graphite Gasket Sheet

    Products Description

    Flexible graphite sheet, graphite foil, graphite paper, graphite tape, and graphite strip (paper) all fall under the category of flexible graphite materials. These materials, occasionally called flexible graphite paper or sheet, are created by chemically treating natural graphite flakes and then heating them at high temperatures to form graphite worms. The density of this worm - like graphite powder is around 0.003g/cc. Subsequently, rolling is utilized to shape the flexible graphite coil. The expanded graphite coiled material contains no binders or fillers, hence boasting high purity. It exhibits excellent corrosion resistance, radioactivity resistance, high / low - temperature resistance, good compression resilience, self - lubrication, and impermeability, making it a great fit for sealing low - pressure components. The graphite coil can be combined with metal sheets to produce various graphite composite plates.
    In terms of product applications:
    1. It can serve as a material for graphite packing rings.
    2. It may be combined with metal sheets to form graphite composite sheets, which are then cut into sealing gaskets of various shapes.
    3. After being processed into thick plates, it is directly used to fabricate various low - pressure gaskets or high - temperature insulation pads.
    Standard specifications for graphite sheets are as follows: Widths of 1000mm or 1500mm, coil lengths of 30m, 50m, or 80m; plate sizes of 1000mm or 1500mm; coil thicknesses ranging from 0.15 - 1.0mm; plate thicknesses from 1.0mm - 5mm; density values between 0.8 - 1.25g/cm3. Other special specifications can be adjusted to meet customer demands.
    ItemStandard Value
    C concentration99%
    S concentration<1000ppm
    chlorine concentration<45ppm
    tensile strength4.5MPa
    compressibility>40%
    recovery>10%
    Temperature-200ºC-600ºC
    Pressure20MPa
    Terence of Thickness-0.04mm~+0.04mm
    Terence of DimensionIn accordance with your Gasket size
    Terence of Density-0.06~g/cm3+0.06gcm3

    Grades Separate :JB/T53392-1999
    Mechanical DataQualified productTop GradeSuperior Grade
    Density Tolerance
    g/cm3
    <0.4±0.10
    ±0.05
    0.4±0.07
    Tensile Strength MPa3.24.55.0
    Compression Ratio %35~55
    Rebound Rate %91112
    Stress relaxation rate %10
    Ash %6.03.01.0
    Heat loss on ignation %450ºC1.00.5
    600ºC2015

    Sulphur content
    1500ppm1000ppm600ppm

    Chloride content
    100ppm50ppm20ppm

    Ultra-Thin Flexible Graphite Gasket Sheet

    Ultra-Thin Flexible Graphite Gasket Sheet

    Ultra-Thin Flexible Graphite Gasket Sheet
