    3mm Thick Sealing Gasket Graphite Sheet Chemical Resistant

    Ask Lasest Price
    Brand Name : CLINGSEAL
    Model Number : CSG80
    Certification : ISO,SGS
    Price : 2.2USD PER KG
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500Tons per month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    3mm Thick Sealing Gasket Graphite Sheet Chemical Resistant

    Products Description

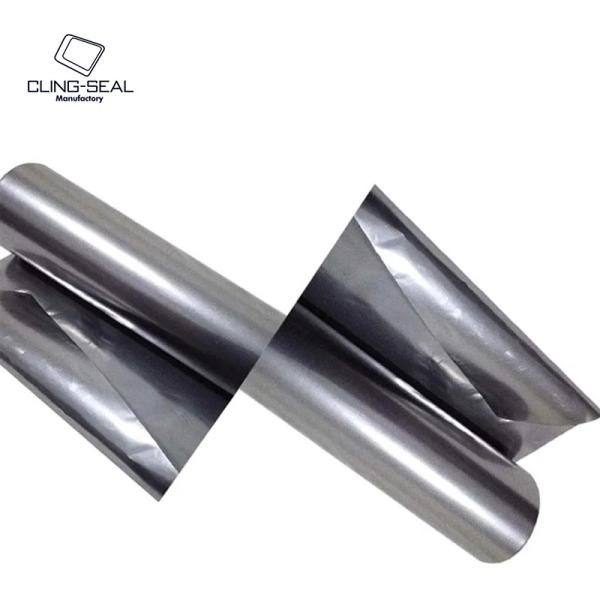

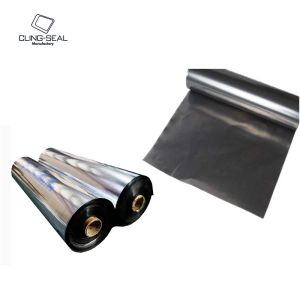

    3mm Thick Graphite Sealing Sheets

    Flexible graphite materials include sheets, foils, papers, tapes, and strips. Manufactured from natural flake graphite through chemical intercalation and high-temperature exfoliation, these materials form worm-like structures with approximately 0.003g/cm³ density. The binder-free expanded graphite is calendared into rolls, offering:

    • 99%+ purity
    • Chemical resistance
    • Radiation tolerance
    • Thermal stability (-200°C to +650°C)
    • Compression recovery
    • Self-lubricating properties
    • Gas-tight sealing

    3mm Thick Sheet Features:

    • Ideal for high-temperature insulation applications
    • Provides enhanced sealing performance in low-pressure systems
    • Available in pure graphite or metal-reinforced composites

    Product Applications:

    1. Custom packing rings for pumps and valves
    2. Die-cut gaskets for specialized equipment
    3. Thick insulation pads for high-temperature environments

    Standard Specifications:

    • Sheet Thickness: 3.0mm (other thicknesses: 1.0-5.0mm)
    • Sheet Size: 1000x1000mm / 1500x1500mm
    • Roll Dimensions:
      • Width: 1000mm / 1500mm
      • Length: 30m / 50m / 80m
    • Density: 0.8-1.25g/cm³
      Custom sizes and thicknesses available upon request
    ItemStandard Value
    C concentration99%
    S concentration<1000ppm
    chlorine concentration<45ppm
    tensile strength4.5MPa
    compressibility>40%
    recovery>10%
    Temperature-200ºC-600ºC
    Pressure20MPa
    Terence of Thickness-0.04mm~+0.04mm
    Terence of DimensionIn accordance with your Gasket size
    Terence of Density-0.06~g/cm3+0.06gcm3

    Grades Separate :JB/T53392-1999
    Mechanical DataQualified productTop GradeSuperior Grade
    Density Tolerance
    g/cm3
    <0.4±0.10
    ±0.05
    0.4±0.07
    Tensile Strength MPa3.24.55.0
    Compression Ratio %35~55
    Rebound Rate %91112
    Stress relaxation rate %10
    Ash %6.03.01.0
    Heat loss on ignation %450ºC1.00.5
    600ºC2015

    Sulphur content
    1500ppm1000ppm600ppm

    Chloride content
    100ppm50ppm20ppm
