    Vibration Resistance Flexible Graphite Gasket For Power Generators

    Ask Lasest Price
    Brand Name : CLINGSEAL
    Model Number : CSG80
    Certification : ISO,SGS
    Price : 2.2USD PER KG
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500Tons per month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Vibration Resistance Flexible Graphite Gasket For Power Generators

    Flexible Graphite Gasket For Power Generators

    Products Description

    roduct Profile

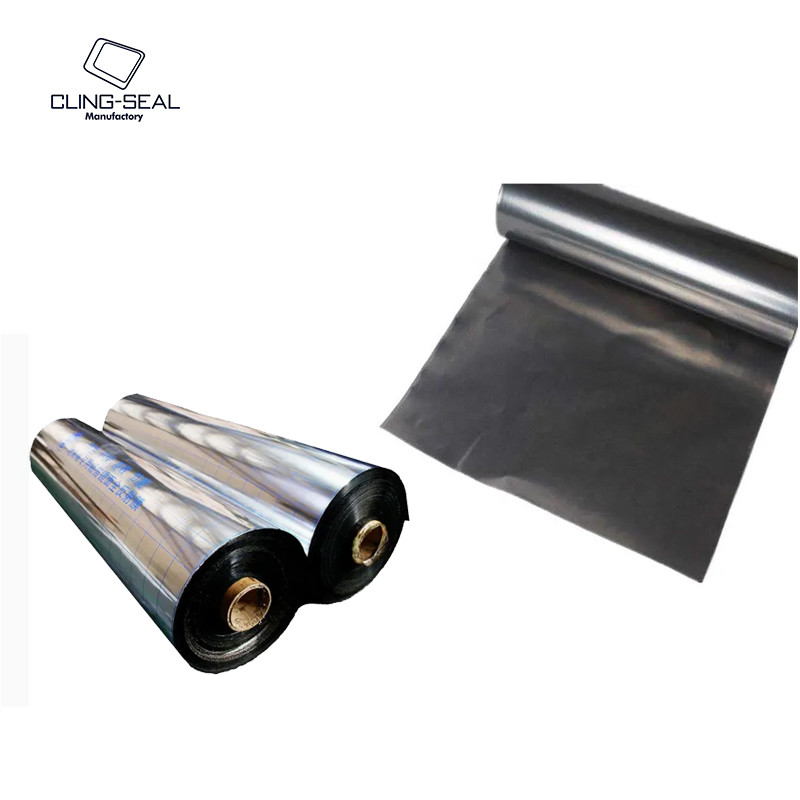

    Flexible graphite materials, including flexible graphite sheets, graphite foil, graphite paper, graphite tape, and graphite strip (paper), are advanced sealing solutions designed for critical power generation applications. These materials are produced through a two - step process: natural graphite flakes undergo chemical exfoliation followed by high - temperature expansion to form worm - like structures with a density of approximately 0.003g/cc. Rolling these structures results in flexible graphite coils that are binder - and filler - free. This composition ensures high purity and exceptional performance characteristics such as corrosion resistance, radioactivity resistance, thermal stability across extreme temperatures, compression resilience, self - lubrication, and impermeability.

    Power Generator - Specific Advantages

    1. Thermal Management
      • Operates reliably in temperature ranges from cryogenic (-200°C) to superheated steam conditions (+650°C), ensuring consistent sealing in boiler systems and turbine housings.
      • Low thermal conductivity prevents heat loss in high - efficiency power plants.
    2. Vibration & Pressure Resistance
      • Withstands cyclic pressures up to 100 bar and mechanical vibrations in rotating equipment like alternators and gas turbines.
      • Compression set resistance maintains gasket integrity under prolonged stress.
    3. Electrical Conductivity
      • Graphite’s inherent conductivity dissipates static charges in generator components, reducing risk of electrical arcing.

    Applications in Power Generation

    1. Turbine Sealing
      • Used in steam, gas, and hydroturbines to prevent leaks in high - velocity fluid paths.
      • Composite versions with stainless steel reinforcement provide structural support in high - pressure zones.
    2. Heat Exchanger Gaskets
      • Seals between tube bundles and headers in condensers and boilers, resisting thermal cycling and chemical attack from cooling water.
    3. Generator Housing Seals
      • Maintains hermetic seals in hydrogen - cooled generators, preventing gas leakage and ensuring electromagnetic compatibility.

    Custom Specifications for Power Plants

    • Sizes:
      • Coils: Widths of 1000mm/1500mm, lengths of 30m/50m/80m.
      • Plates: 1000mm x 1500mm, thicknesses from 0.15mm (for precision components) to 5mm (for heavy - duty applications).
    • Density: Customizable between 0.8 - 1.25g/cm³ to balance compressibility and structural strength.
    • Special Features:
      • Laser - cut designs for intricate shapes in generator stator assemblies.
      • Corrugated profiles to enhance sealing efficiency in flange connections.

    Compliance & Quality Assurance

    • Meets ASME BPVC Section III (nuclear power) and ISO 13709 (gas turbines) standards.
    • RoHS - compliant and free of halogenated compounds, ensuring compliance with environmental regulations.
    • Third - party testing available for flame resistance (ASTM E136), thermal conductivity (ASTM C518), and compressive strength (ASTM F36).

    Why Choose Our Generator Gaskets?

    • Extended Service Life: Reduces downtime in power plants with a mean time between replacements exceeding 10 years in typical applications.
    • Cost - Effective: Minimizes maintenance costs through resistance to chemical degradation and thermal fatigue.
    • Technical Partnership: Provides FEA analysis and on - site installation support for complex generator configurations.

    Engineered to deliver reliable performance in the most demanding power generation environments.
    Item Standard Value
    C concentration 99%
    S concentration <1000ppm
    chlorine concentration <45ppm
    tensile strength 4.5MPa
    compressibility >40%
    recovery >10%
    Temperature -200ºC-600ºC
    Pressure 20MPa
    Terence of Thickness -0.04mm~+0.04mm
    Terence of Dimension In accordance with your Gasket size
    Terence of Density -0.06~g/cm3+0.06gcm3

    Grades Separate :JB/T53392-1999
    Mechanical Data Qualified product Top Grade Superior Grade
    Density Tolerance
    g/cm3
    <0.4 ±0.10
    ±0.05
    0.4 ±0.07
    Tensile Strength MPa 3.2 4.5 5.0
    Compression Ratio % 35~55
    Rebound Rate % 9 11 12
    Stress relaxation rate % 10
    Ash % 6.0 3.0 1.0
    Heat loss on ignation % 450ºC 1.0 0.5
    600ºC 20 15

    Sulphur content
    1500ppm 1000ppm 600ppm

    Chloride content
    100ppm 50ppm 20ppm
